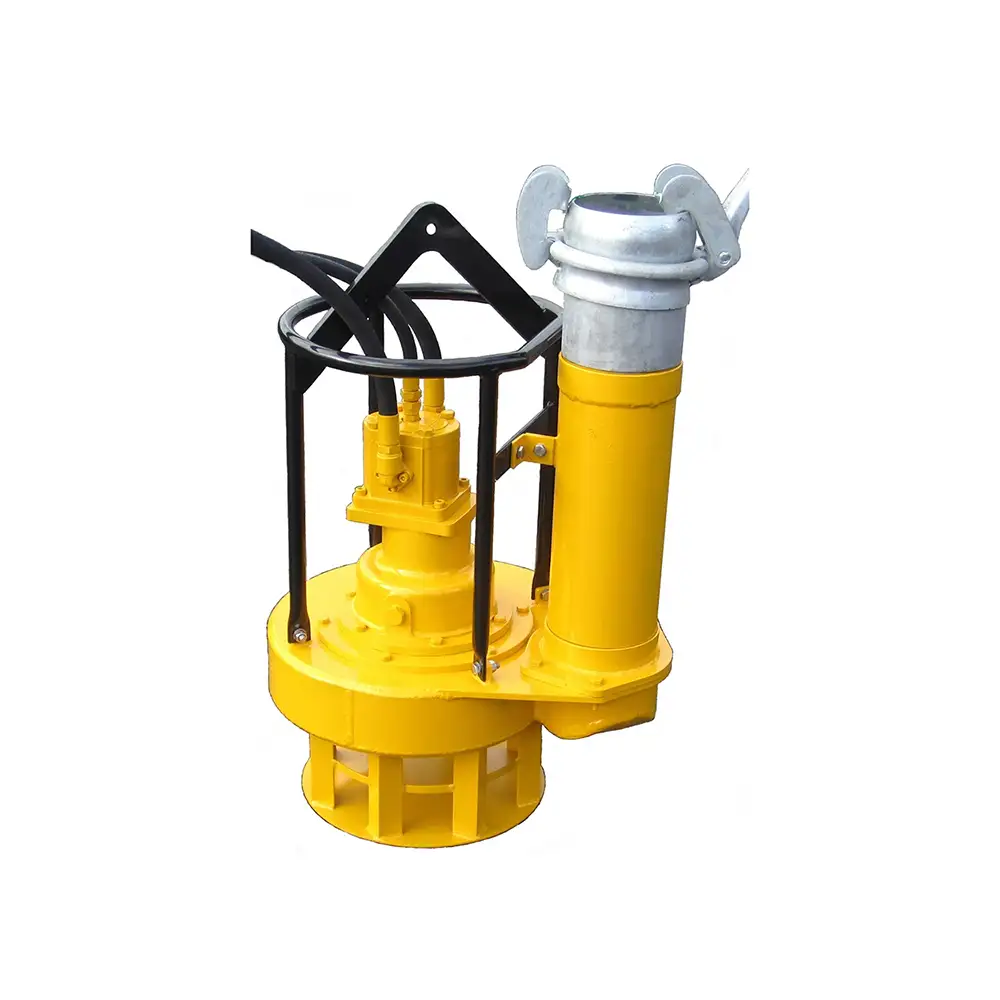

6″ Drainer Pump
700 cm (H) × 515 cm (W) × 650 cm (L)
Weight: 105/120 kg
This unit is excellent when a large amount of water has to be used, such as a river diversion.
Built for the more demanding side of construction, the shaft and bearing housing is rugged. Stainless steel wear plates and replaceable wear parts are used so that even after many years of hard work the pump can be returned to service.
3 line hydraulics allow long hose runs so that the Powerpack can be in a different zone to the pump if required.
Good solids handling with nice wide diameter inlet allows easy fuild entry into the volute.
- Certified lifting eye
- High pressure motor
- Stainless wear plates
- Dry running
- Biodegradable oil
- 2 blade impeller
Key Features
Product Specifications
| Maximum water head | 22M |
| Maximum water flow | 96 lt/sec |
| Solids handling | 50mm |
| Powerpack | 35HP |
| Hydraulic oil flow | 60 lt/min |
| Hydraulic working pressure | 175 bar |
| Max hydraulic pressure | 240 bar |
Suitable Power Packs for this pump:
