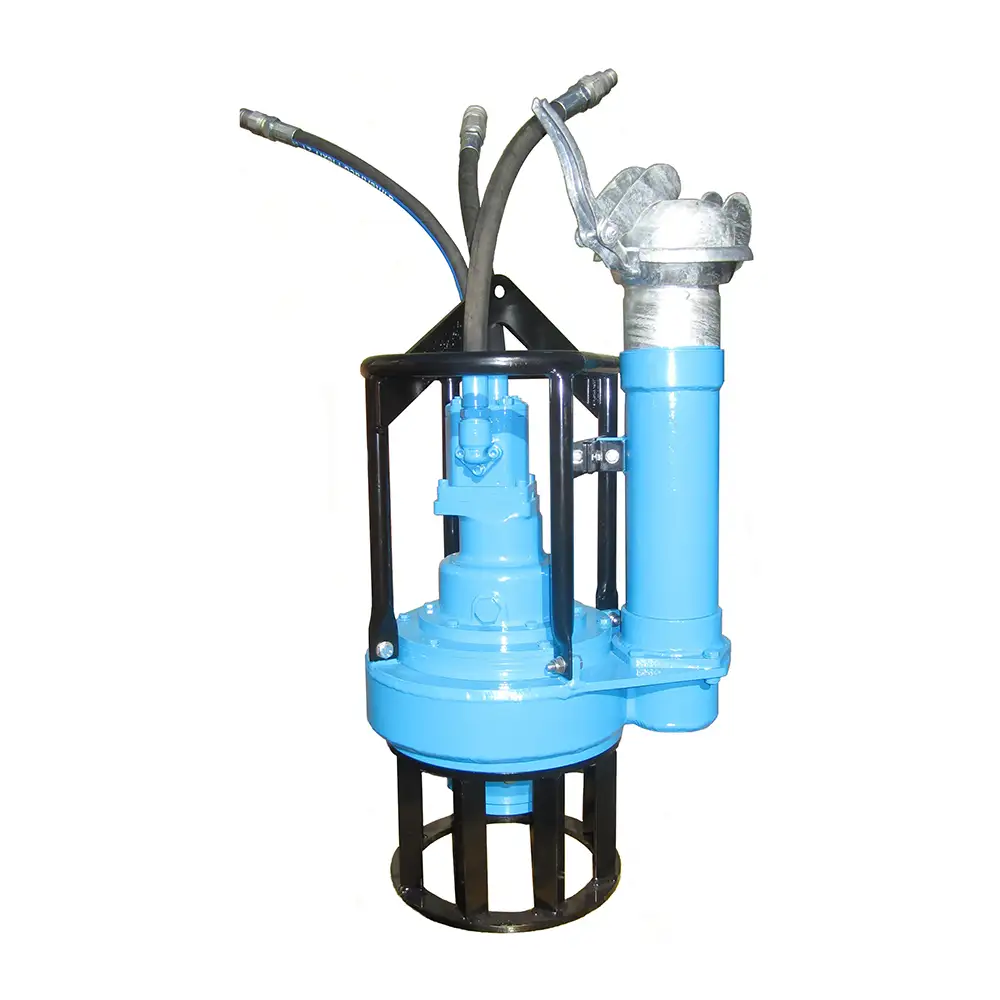

4″ Screw Pump
840 cm (H) × 360 cm (W) × 480 cm (L)
Weight: 51/65 kg
The screw impeller handles thick sludges and sewage very well.
The scroll of the screw impeller encourages entry and once travelling through, there is nothing for solids to block on. The entry point of the impeller is hidden to the fluid, stopping debris from tangling on the impeller.
The pump can give many years’ service and can be rebuilt many times with replaceable wear parts.
Available in 20HP and 35HP versions to allow you to choose your Powerpack.
- Certified lifting eye
- High pressure motor
- Stainless wear plates
- Dry running
- Biodegradable oil
- 2 Blade impeller
Key Features
Product Specifications
| Maximum water head | 26M |
| Maximum water flow | 165 m3/hr |
| Solids handling | 50mm |
| Hydraulic oil flow | 30 l/min |
| Hydraulic working pressure | 175 bar |
| Max hydraulic pressure | 240 bar |
Suitable Power Packs for this pump:
